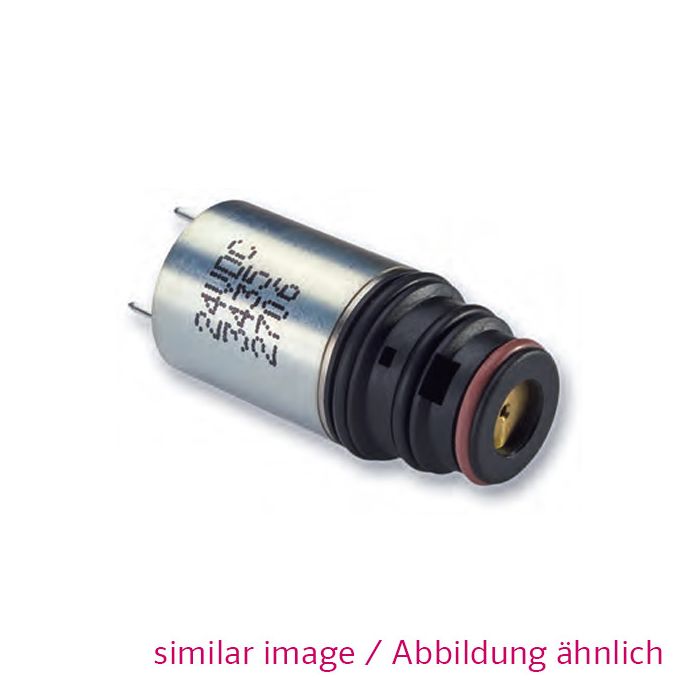

Solenoid Valve C13 121-070-0015
- Variant: Width: 13 mm, Voltage: 24 V, Power: 1,8 W
- Connection: Pin
- Buy 10 for €65.99 each and save 10%
- Buy 50 for €51.28 each and save 30%
- Buy 100 for €43.98 each and save 40%
The solenoid valves (cartridge types C9 and C13), which can be integrated into a cavity, have a rotationally symmetrical valve housing for the pneumatic ports, air supply and exhaust, and the working connection. Cartridge solenoid valves are available in two diameters: 9 and 13 mm. A soldered circuit board with LED and overvoltage protection is optional. Cartridge solenoid valves switch under power consumption from 0.4 to 1.2 watts. The Cartridge 13 is also available in a particularly energy-efficient bistable version. The following switching functions are standard: 2/2 NC (normally closed), 3/2 NC, 2/2 NO (normally open) and 3/2 NO. Depending on the variant, the pressure range is up to 10 bar. For a design at negative pressure please contact us.
| System affiliation | Cartridge 13 mm |
|---|---|
| pneumatic operating mode | 3/2 NC |
| Overall Width | 13 mm |
| Electrical Connection | Pin |
| Manual Override | Without Manual Override |
| Sheathing material solenoid coil | metallic shell |
| 1. Voltage (V) | 24 V |
| 1. Kind of Current | DC |
| 1. Power [W] | 1,8 W |
| Orifice Size Inlet | 1,1 mm |
| Orifice Size Exhaust | 1,2 mm |
| Min. Operating Pressure | 4,0 bar |
| Max. Operating Pressure | 7,0 bar |
| Average power-on time | 5 ms |
| Permissible operating temperature min. | -10 °C |
| Permissible operating temperature max. | 60 °C |
| nominal flow 1-2 | 24 l/min |
| nominal flow 2-3 | 27 l/min |
| Medium quality according to ISO standard | 3-3-3 |
| leakage max. | 4 ml/min |
