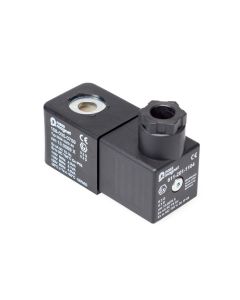

Solenoid Coils ATEX

Solenoid Coils ATEX

For the use in hazardous locations nass magnet offers special solenoids. The so called Ex-Proof coils are available with ATEX, IEC, or CSA and FM aprovals.

Solenoid Coils ATEX
View as Grid Catalog

Items 1-10 of 20

Set Descending Direction

Solenoid Coils

PriceSystem affiliationPower LevelType of protectionOverall WidthElectrical ConnectionSheathing material1. Voltage (V)1. Kind of Current1. Power [W]1. power [VA]2. Voltage (V)2. Kind of Current2. Power [W]2. Power [VA]Voltage Tolerance [%]Voltage Tolerance min. [%]Drawing numberpneumatic operating mode
Price:System affiliation:

System 8

Power Level:

4

Type of protection:

Ex tc

Overall Width:

30 mm

Electrical Connection:

DIN A

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

DC

1. Power [W]:

2,7 W

1. power [VA]:

2. Voltage (V):

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

3

Type of protection:

Ex m

Overall Width:

22 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

110 V

1. Kind of Current:

AC/50Hz

1. Power [W]:

1. power [VA]:

3,8 VA

2. Voltage (V):

120 V

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

4,5 VA

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

0513 00.1-00/6835

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

3

Type of protection:

Ex m

Overall Width:

22 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

220 V

1. Kind of Current:

AC/50Hz

1. Power [W]:

1. power [VA]:

4,8 VA

2. Voltage (V):

240 V

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

5,5 VA

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

0513 00.1-00/6836

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

3

Type of protection:

Ex m

Overall Width:

22 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

AC/50Hz

1. Power [W]:

1. power [VA]:

4,6 VA

2. Voltage (V):

24 V

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

4,6 VA

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

0513 00.1-00/6847

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

5

Type of protection:

Ex m

Overall Width:

30 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

110 V

1. Kind of Current:

AC/50Hz

1. Power [W]:

1. power [VA]:

4,7 VA

2. Voltage (V):

110 V

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

4,7 VA

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

0515 00.1-00/6895

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

5

Type of protection:

Ex m

Overall Width:

30 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

220 V

1. Kind of Current:

AC/50Hz

1. Power [W]:

1. power [VA]:

4,8 VA

2. Voltage (V):

240 V

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

5,8 VA

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

0515 00.1-00/6949

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

3

Type of protection:

Ex m

Overall Width:

22 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

DC

1. Power [W]:

5,0 W

1. power [VA]:

2. Voltage (V):

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

1213 00.1-00/6858

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

3

Type of protection:

Ex m

Overall Width:

22 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

DC

1. Power [W]:

5,0 W

1. power [VA]:

2. Voltage (V):

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

1213 00.1-00/6981

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

5

Type of protection:

Ex m

Overall Width:

30 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

DC

1. Power [W]:

5,2 W

1. power [VA]:

2. Voltage (V):

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

1215 00.1-00/6894

pneumatic operating mode:

Price:System affiliation:

System 8

Power Level:

4

Type of protection:

Ex m

Overall Width:

30 mm

Electrical Connection:

Cable

Sheathing material:

Thermoplastic

1. Voltage (V):

24 V

1. Kind of Current:

DC

1. Power [W]:

3,3 W

1. power [VA]:

2. Voltage (V):

2. Kind of Current:

2. Power [W]:

2. Power [VA]:

Voltage Tolerance [%]:

10 %

Voltage Tolerance min. [%]:

10 %

Drawing number:

1215 30.1-00/6896

pneumatic operating mode:
