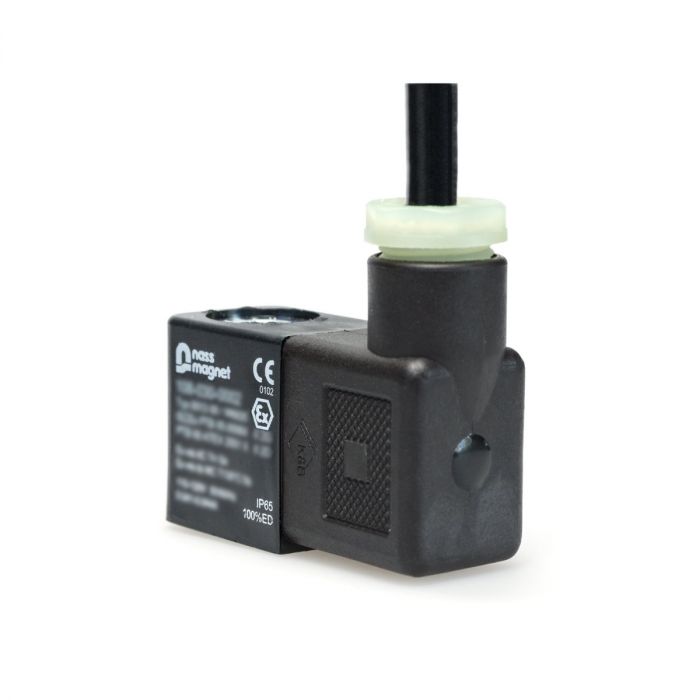

Solenoid Coil 108-030-1028 Ex mb, Ex tb
Out of stock
- System 8
- Width: 22 mm
- Type of Approval: Ex mb, Ex tb
- Primary Voltage: 24 V DC
- Power: 5,0 W
€164.71
Out of stock
Part number
108-030-1028
- Buy 10 for €137.38 each and save 17%
- Buy 25 for €123.72 each and save 25%
- Buy 50 for €109.84 each and save 33%
- Buy 100 for €93.89 each and save 43%
- Buy 250 for €85.65 each and save 48%
For use in critical (potentially explosive) environments, nass magnet offers components of the System 8 and System 13 series. These are designed according to DIN EN 60079 and tested by the Physikalisch-Technische Bundesanstalt (PTB) according to the European Community Directive 2014/34/EU.
Explosion protection is ensured by using the components specified in the catalog and matched to each other. Furthermore, various country-specific approvals exist, such as the China Compulsory Certification (CCC), a certification system valid China.
System affiliation | System 8 |
---|---|
Power Level | 3 |
Type of protection | Ex m |
Overall Width | 22 mm |
Electrical Connection | Cable |
Sheathing material | Thermoplastic |
1. Voltage (V) | 24 V |
1. Kind of Current | DC |
1. Power [W] | 5,0 W |
Voltage Tolerance [%] | 10 % |
Voltage Tolerance min. [%] | 10 % |
Drawing number | 1213 00.1-00/6858 |
