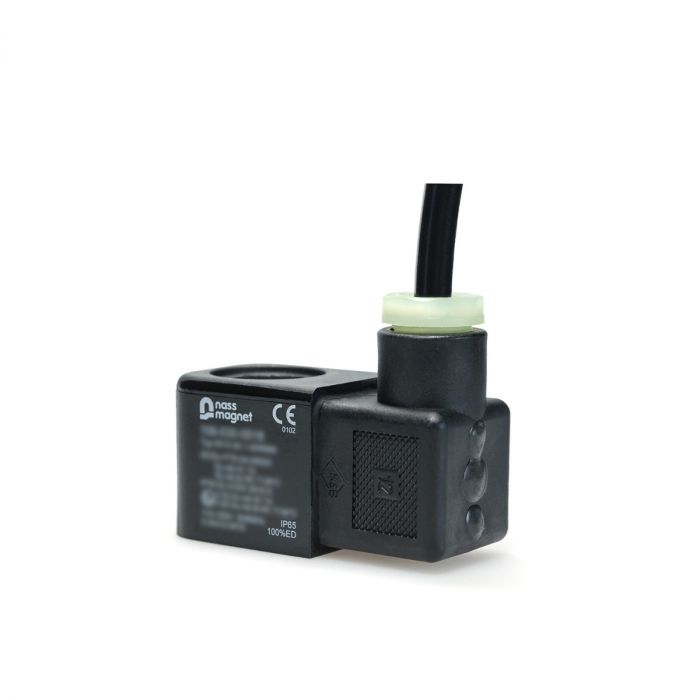

Solenoid Coil 108-030-0026 Ex mb, Ex tb
- System 8
- Width: 30 mm
- Type of Approval: Ex mb, Ex tb
- Primary Voltage: 220 V AC/50Hz
- Power: 2,8 VA
For use in critical (potentially explosive) environments, nass magnet offers components of the System 8 and System 13 series. These are designed according to DIN EN 60079 and tested by the Physikalisch-Technische Bundesanstalt (PTB) according to the European Community Directive 2014/34/EU.
Explosion protection is ensured by using the components specified in the catalog and matched to each other. Furthermore, various country-specific approvals exist, such as the China Compulsory Certification (CCC), a certification system valid China.
| System affiliation | System 8 |
|---|---|
| Power Level | 4 |
| Type of protection | Ex mb, Ex tb |
| Overall Width | 30 mm |
| Electrical Connection | Cable |
| Sheathing material | Thermoplastic |
| 1. Voltage (V) | 220 V |
| 1. Kind of Current | AC/50Hz |
| 1. power [VA] | 2,8 VA |
| 2. Voltage (V) | 240 V |
| 2. Power [VA] | 3,6 VA |
| Voltage Tolerance [%] | 10 % |
| Voltage Tolerance min. [%] | 10 % |
| Drawing number | 0515 30.1-00/6961 |
