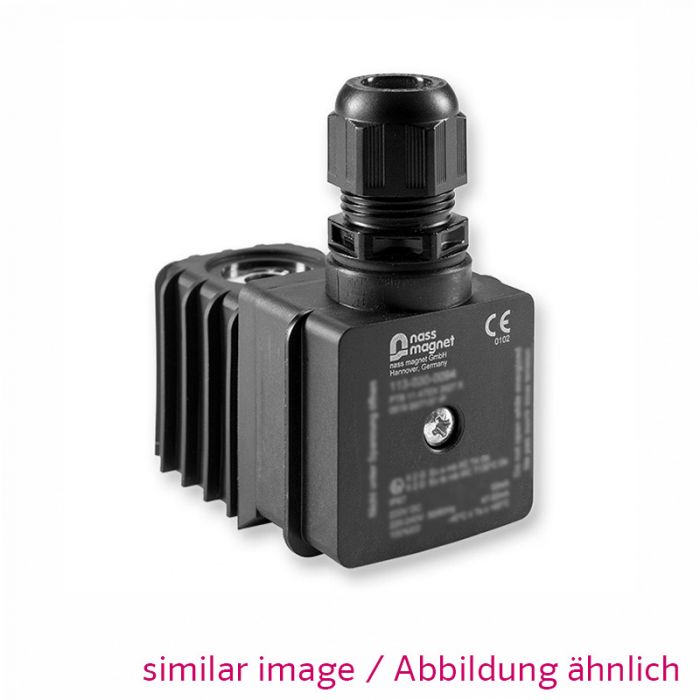

Solenoid Coil 113-030-0369 Ex

In stock
  • System 13
  • Width: 52 mm
  • Type of Approval: See product datasheet for approval details.
  • Primary Voltage: 230 V AC/50Hz
  • Power: 4,8 VA
€251.59
In stock
Part number
113-030-0369
  • Buy 10 for €223.91 each and save 11%
  • Buy 25 for €206.29 each and save 18%
  • Buy 50 for €191.21 each and save 24%
  • Buy 100 for €171.08 each and save 32%

For use in critical (potentially explosive) environments, nass magnet offers components of the System 8 and System 13 series. These are designed according to DIN EN 60079 and tested by the Physikalisch-Technische Bundesanstalt (PTB) according to the European Community Directive 2014/34/EU.

Explosion protection is ensured by using the components specified in the catalog and matched to each other. Furthermore, various country-specific approvals exist, such as the China Compulsory Certification (CCC), a certification system valid China.

More Information
System affiliationSystem 13
Power Level2
Type of protectionEx e
Overall Width52 mm
Electrical ConnectionTerminal Box
Sheathing materialThermoplastic
1. Voltage (V)230 V
1. Kind of CurrentAC/50Hz
1. power [VA]4,8 VA
2. Voltage (V)220 V
2. Power [W]4,8 W
Voltage Tolerance [%]10 %
Voltage Tolerance min. [%]10 %
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
pdf
datasheet for 113-030-0364; 113-030-0365; 113-030-0366; 113-030-0368; 113-030-0369; 113-030-0370
