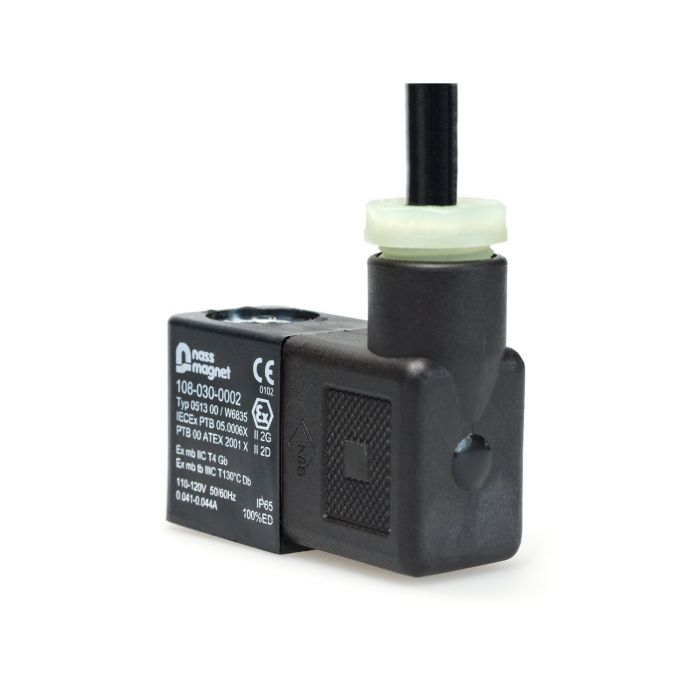

Solenoid Coil 108-030-0003 Ex
- System 8
- Width: 22 mm
- Type of Approval: See product datasheet for approval details.
- Primary Voltage: 220 V AC/50Hz
- Power: 4,8 VA
- Buy 10 for €137.90 each and save 17%
- Buy 25 for €124.23 each and save 25%
- Buy 50 for €110.36 each and save 33%
- Buy 100 for €94.18 each and save 43%
- Buy 250 for €86.66 each and save 48%
For use in critical (potentially explosive) environments, nass magnet offers components of the System 8 and System 13 series. These are designed according to DIN EN 60079 and tested by the Physikalisch-Technische Bundesanstalt (PTB) according to the European Community Directive 2014/34/EU.
Explosion protection is ensured by using the components specified in the catalog and matched to each other. Furthermore, various country-specific approvals exist, such as the China Compulsory Certification (CCC), a certification system valid China.
|System affiliation||System 8|
|Type of protection||Ex m|
|Overall Width||22 mm|
|1. Voltage (V)||220 V|
|1. Kind of Current||AC/50Hz|
|1. power [VA]||4,8 VA|
|2. Voltage (V)||240 V|
|2. Power [VA]||5,5 VA|
|Voltage Tolerance [%]||10 %|
|Voltage Tolerance min. [%]||10 %|
|Drawing number||0513 00.1-00/6836|
