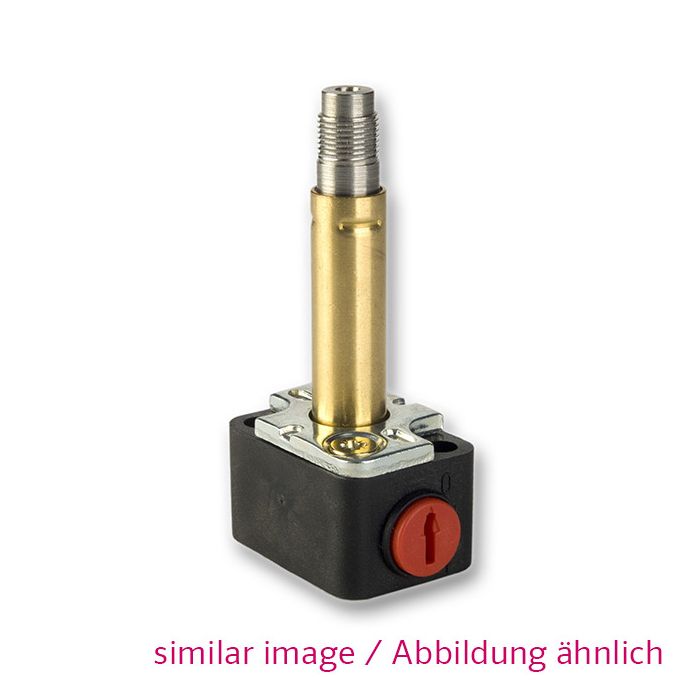

Valve system 106-050-0007

In stock
  • System 6
  • Function: 3/2 NC
  • Valve body type: concentric O-rings (KR)
  • Width: 16 mm
  • Orifice inlet: 1,0 mm
Part number
  • Buy 10 for €41.41 each and save 20%
  • Buy 25 for €36.22 each and save 30%
  • Buy 50 for €31.04 each and save 40%

The nass magnet valve system is a body with an armature assembled into it eliminating the need for the customer to produce a valve seat cavity.

More Information
System affiliationSystem 6
Overall Width16 mm
Electrical operating modeAC/DC
Manual OverrideWith Manual Override
pneumatic operating mode3/2 NC
Orifice Size Inlet1,0 mm
Orifice Size Exhaust1,1 mm
Min. Operating Pressure0,0 bar
Max. Operating Pressure10,0 bar
Surface Coating Armature TubeWithout
Sealing material in the armatureFKM
Coating of armatureWithout
Sealing material to the valve bodyohne Dichtung
Permissible operating temperature min.-10 °C
Permissible operating temperature max.100 °C
Medium quality according to ISO standard3-3-3
nominal flow 1-232 l/min
nominal flow 2-340 l/min
leakage max. 4 ml/min
Drawing number1408 12.6-00
