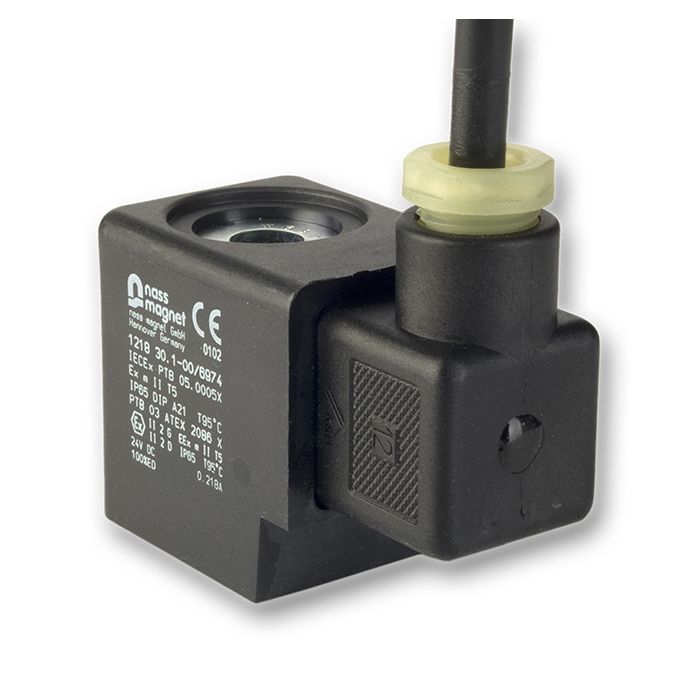

Solenoid Coil 113-030-0267 Ex
- System 13
- Width: 36 mm
- Type of Approval: See product datasheet for approval details.
- Primary Voltage: 12 V DC
- Power: 5,1 W
For use in critical (potentially explosive) environments, nass magnet offers components of the System 8 and System 13 series. These are designed according to DIN EN 60079 and tested by the Physikalisch-Technische Bundesanstalt (PTB) according to the European Community Directive 2014/34/EU.
Explosion protection is ensured by using the components specified in the catalog and matched to each other. Furthermore, various country-specific approvals exist, such as the China Compulsory Certification (CCC), a certification system valid China.
| System affiliation | System 13 |
|---|---|
| Power Level | 2 |
| Type of protection | Ex m |
| Overall Width | 36 mm |
| Electrical Connection | Cable |
| Sheathing material | Thermoplastic |
| 1. Voltage (V) | 12 V |
| 1. Kind of Current | DC |
| 1. Power [W] | 5,1 W |
| Voltage Tolerance [%] | 10 % |
| Voltage Tolerance min. [%] | 10 % |
| Drawing number | 1218 31.1-00/7014 |
